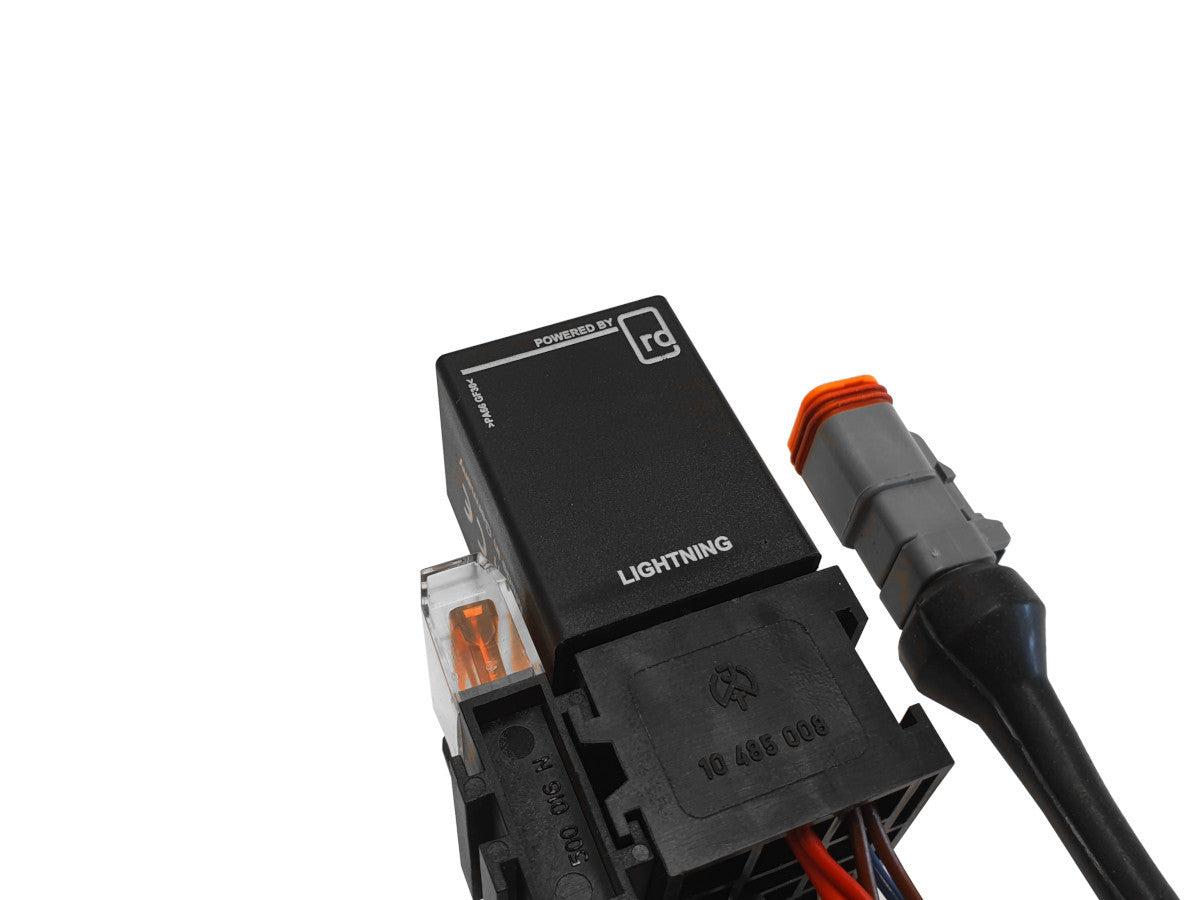

CAN-Extra light wiring Lightning XCU1150 - NOTE 13A MAX

Mounting:

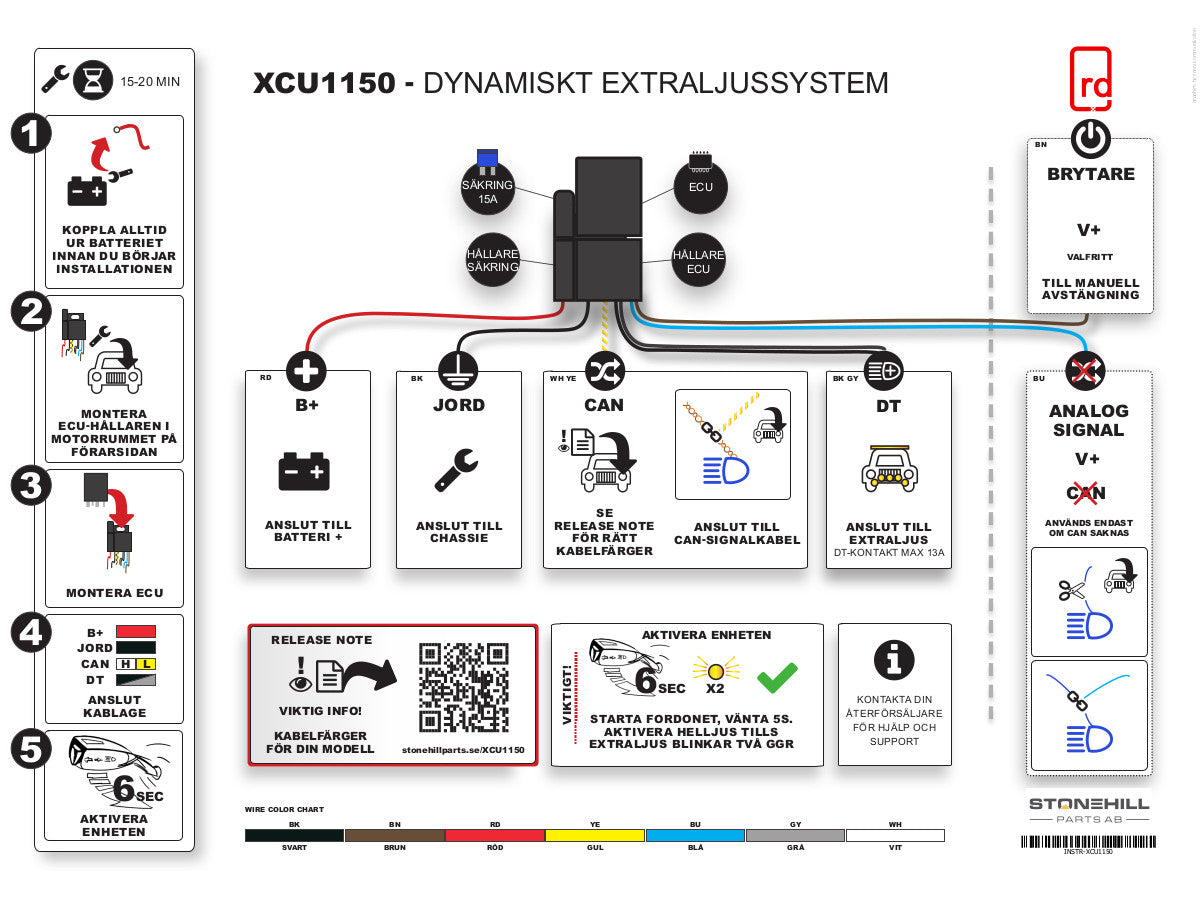

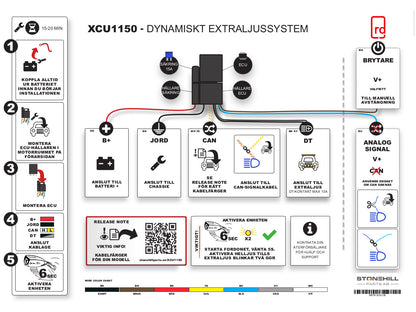

The kit is mounted in the engine compartment or in the wheel arch of some cars, which means that the data reader does not need to be pulled through the firewall like other systems. Connection is made by identifying the correct CAN cables (see installation instructions) and soldering the XCU1150's connection cables to these. The wiring contains a smart relay, fuse and a DT connector that fits most LED light bars.

Cable colors:

CAN High: White

CAN Low: Yellow

Specifications:

Max allowed load: 13 A (156 W at 12 V)

At higher loads, separate reinforcement cabling is required to avoid damage to the XCU1150.
