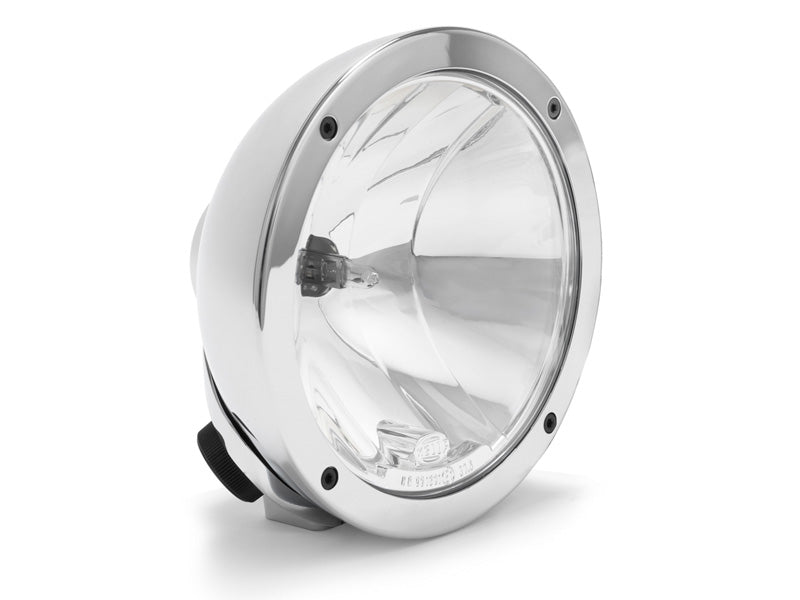

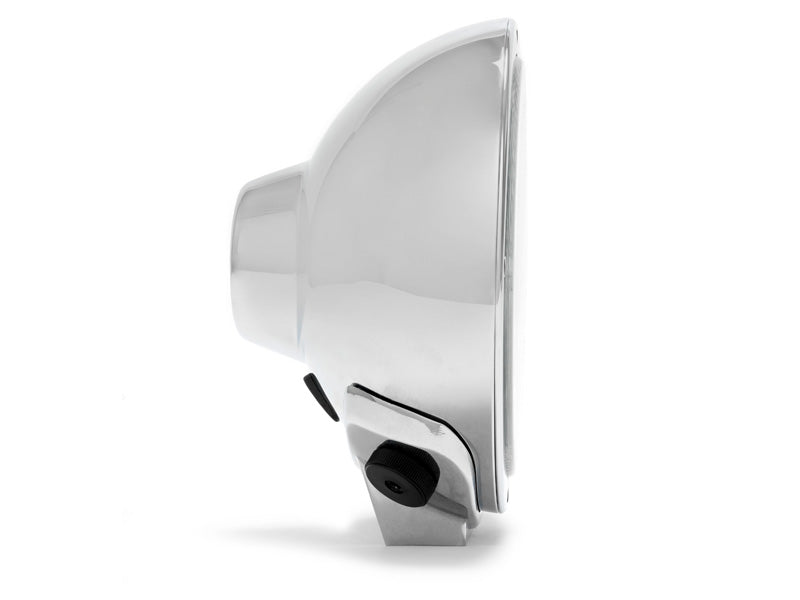

Hella Luminator Compact Chromium – E-approved auxiliary light with chrome housing

Hella Luminator Compact Chromium is a premium choice for those who want to combine style and function. The die-cast metal housing with a high-polished chrome finish gives an exclusive look while protecting against weather, stone chips and vibrations.

The headlight is equipped with a High Boost reflector that provides a smooth, wide beam of light – optimal for country roads, gravel roads and general night driving where side lighting is more important than maximum range. With a reference number of 37.5 and E-approval (ECE R112), it meets all requirements for legal use on the road.

The Luminator Compact Chromium uses an H1 bulb (55W, not included) and is compatible with both 12V and 24V electrical systems. The stable base can be easily reversed to allow for both upright and hanging mounting. The lamp is sold individually and is covered by Hella's 3-year warranty.

Accessories & part numbers
High beam Chromium: 1F3009094031

High beam Blue (blue glass): 1F3009094171

High beam insert Standard: 1F3161825011

Main beam insert Blue: 1F3161825081

Stone chip protection: 8XS165048001

Manufacturer: Hella

Model: Luminator Compact Chromium

Light pattern: Wide high beam

Reflector technology: High Boost

Reference number: 37.5

E-approved: Yes (ECE R112)

Voltage: 12V or 24V (depending on bulb)

Bulb type: H1 55W (bulb not included)

Measure:
– Width: 170 mm
– Height (with bracket): 172 mm
– Depth: 125 mm

Material: Die-cast metal housing

Color: Shiny chrome

Mounting position: Standing or hanging (reversible bracket)

Weight: approx. 1.2 kg

Warranty: 3 years

Sold: Individually
