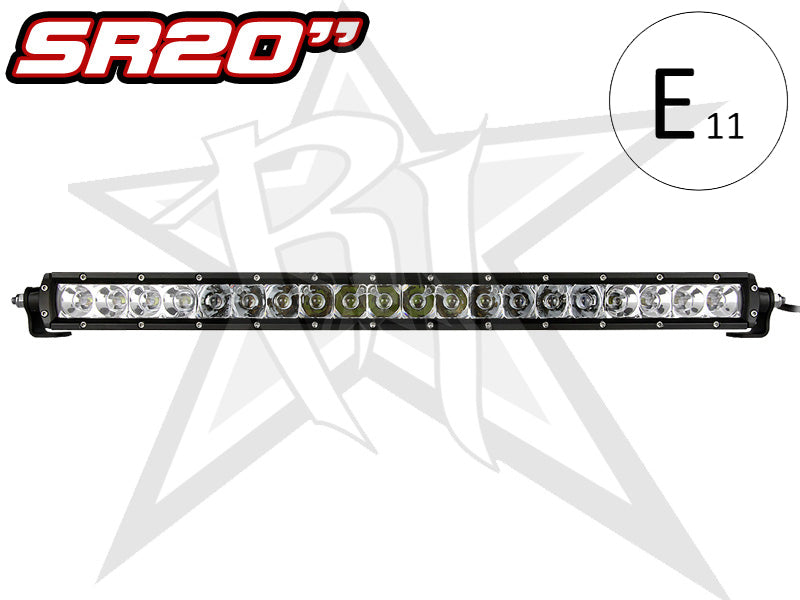

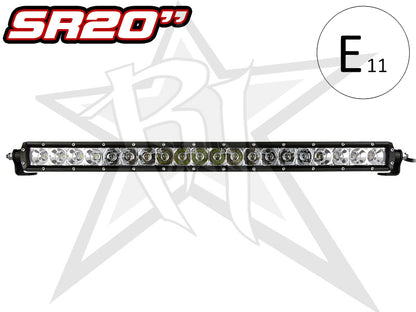

Rigid SR-Series 20" LED Auxiliary Light Bar – E-marked & combined light pattern

A light bar for those who drive a lot in the dark
With the Rigid SR20 you get a combination of long range in the middle of the beam and wide beam from the sides. This means you can see both far ahead and out to the sides – perfect when driving on the road, motorway or in the forest. The beam is ready to use as an additional light straight away and provides a substantial addition to your main beam.

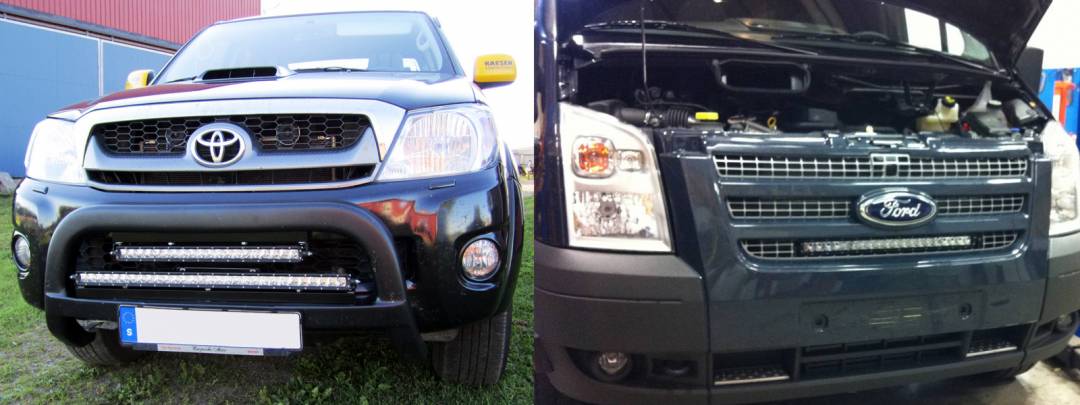

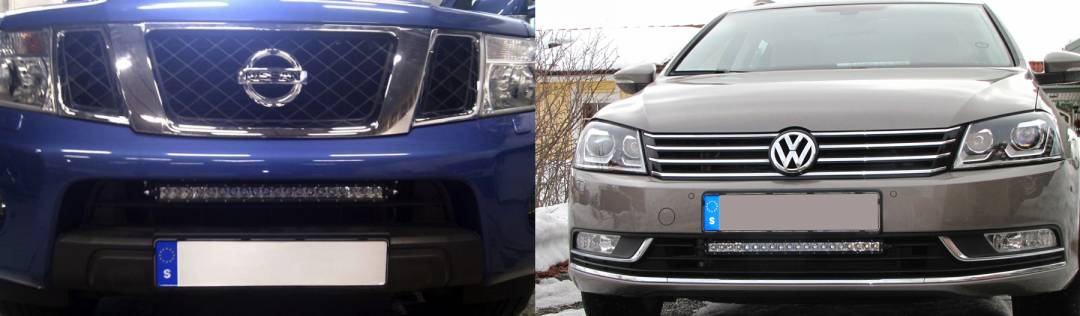

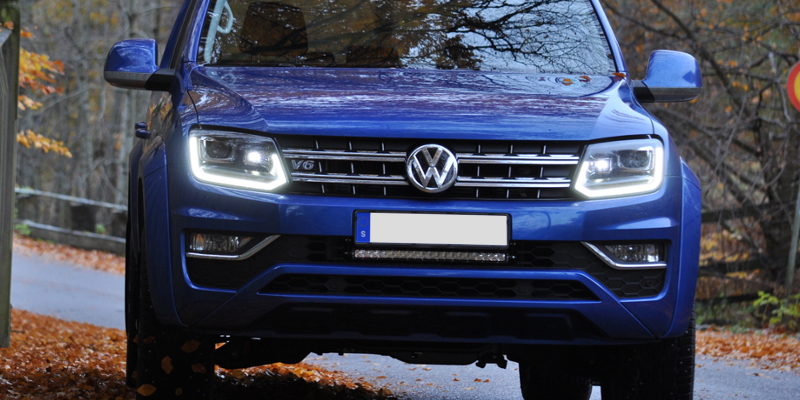

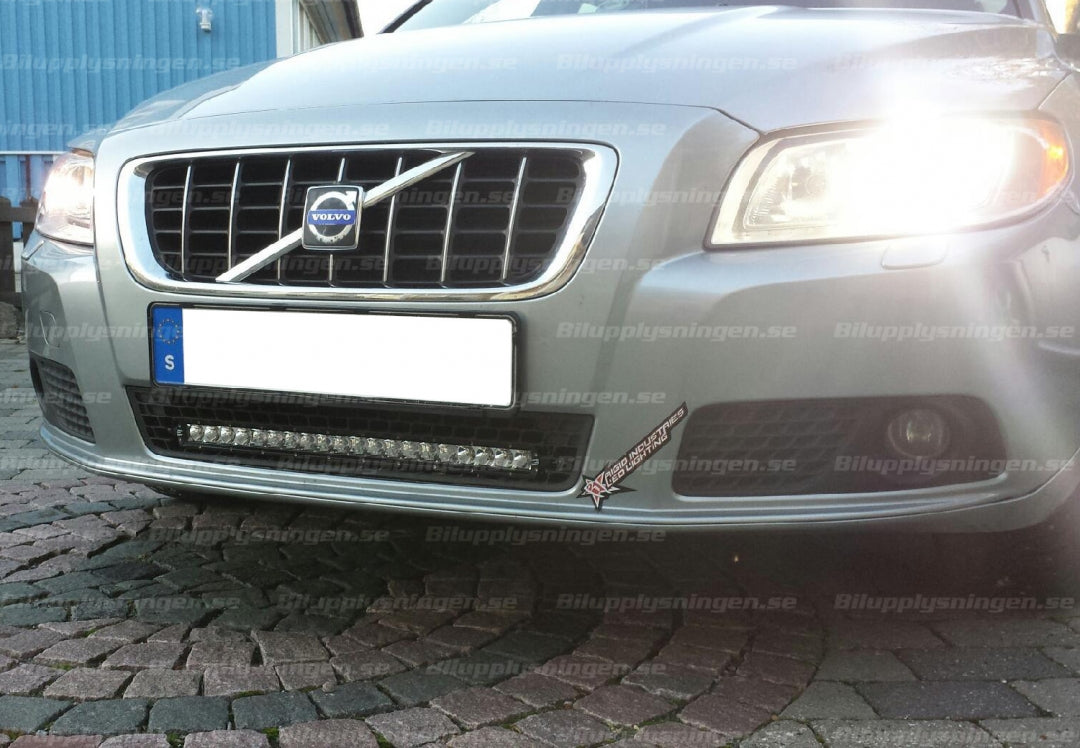

Despite its performance, the ramp is only 41 mm high, making it easy to place on the car – for example above the license plate or in an auxiliary light bar.

Built to last – whatever the weather

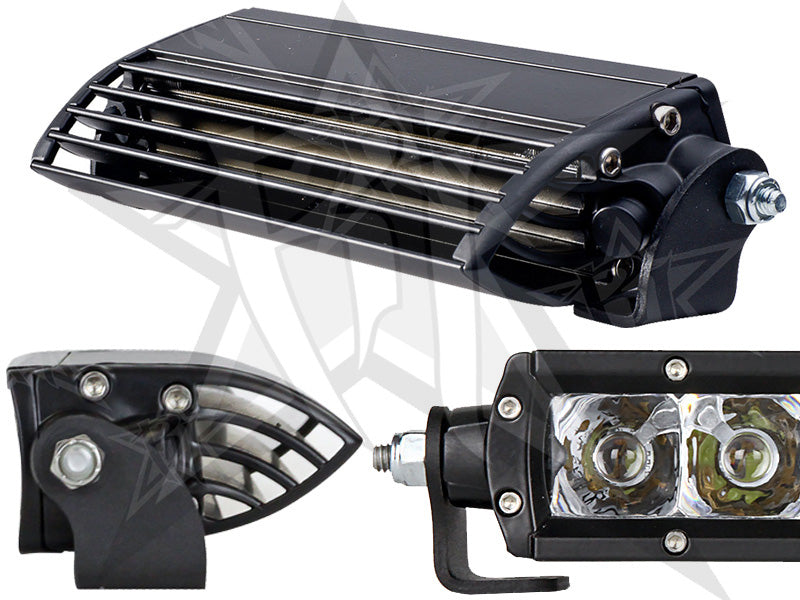

The entire ramp is constructed of powder-coated aluminum and has an unbreakable polycarbonate lens that is resistant to both stone chips and weather. It is rated IP68, meaning it is completely water and dust proof, and tested to military standards for vibration and durability.

Rigid uses patented optics and efficient electronics that convert almost all power into light – not heat. This means the ramp lasts longer and performs consistently even with extended use.

Easy installation – cable kit included
You get moisture-proof wiring with a fuse and switch, so you can easily plug the ramp in. It works with both 12V and 24V electrical systems and has built-in protection against overvoltage and short circuit.

Power: 76W

Luminous flux: 7500 lumens (theoretical)

Light pattern: Spot/Flood Combo – long range + good width

Range: 418 m @ 1 lux

Number of LEDs: 20

Voltage: 9–32 V

Current consumption: 5.5 A

IP class: IP68

Vibration class: MIL810-STDG

Salt spray test: ASTMB117

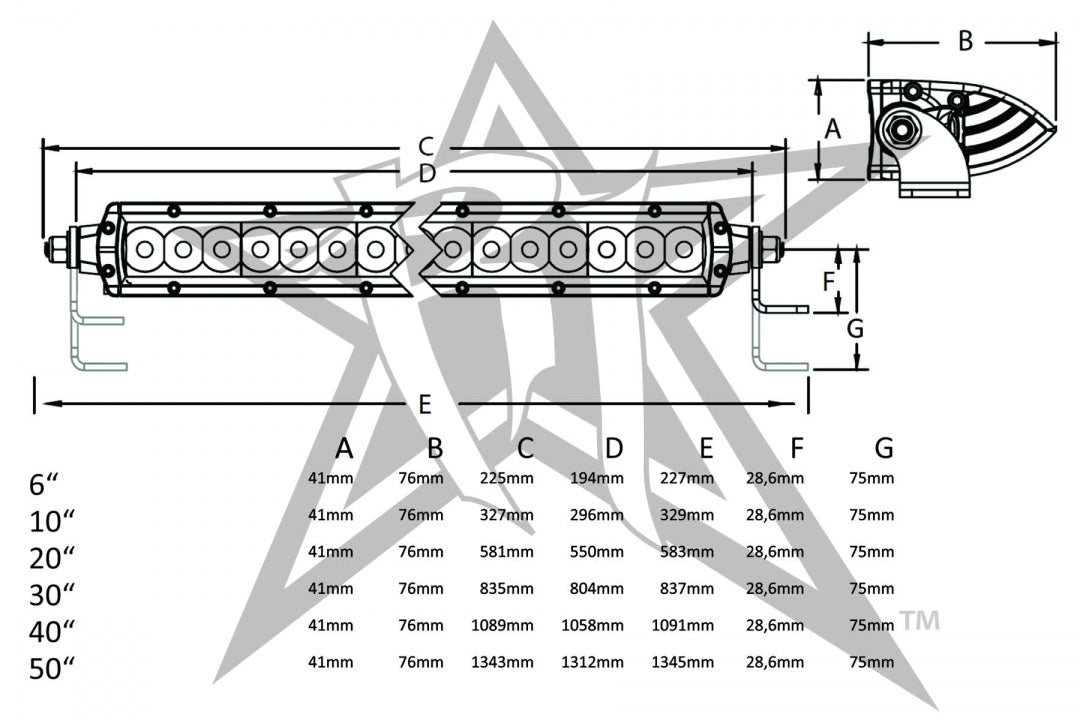

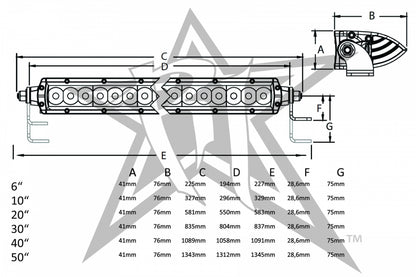

Length: 543mm

Height: 41mm

Depth: 76mm

Lens: Polycarbonate

Material: Aluminum (6061)

Operating range: –40°C to +63°C

Lifespan: Up to 50,000 hours

E-marked: Yes

Origin: Made in the USA

Warranty: 5 years

Sold: Individually
