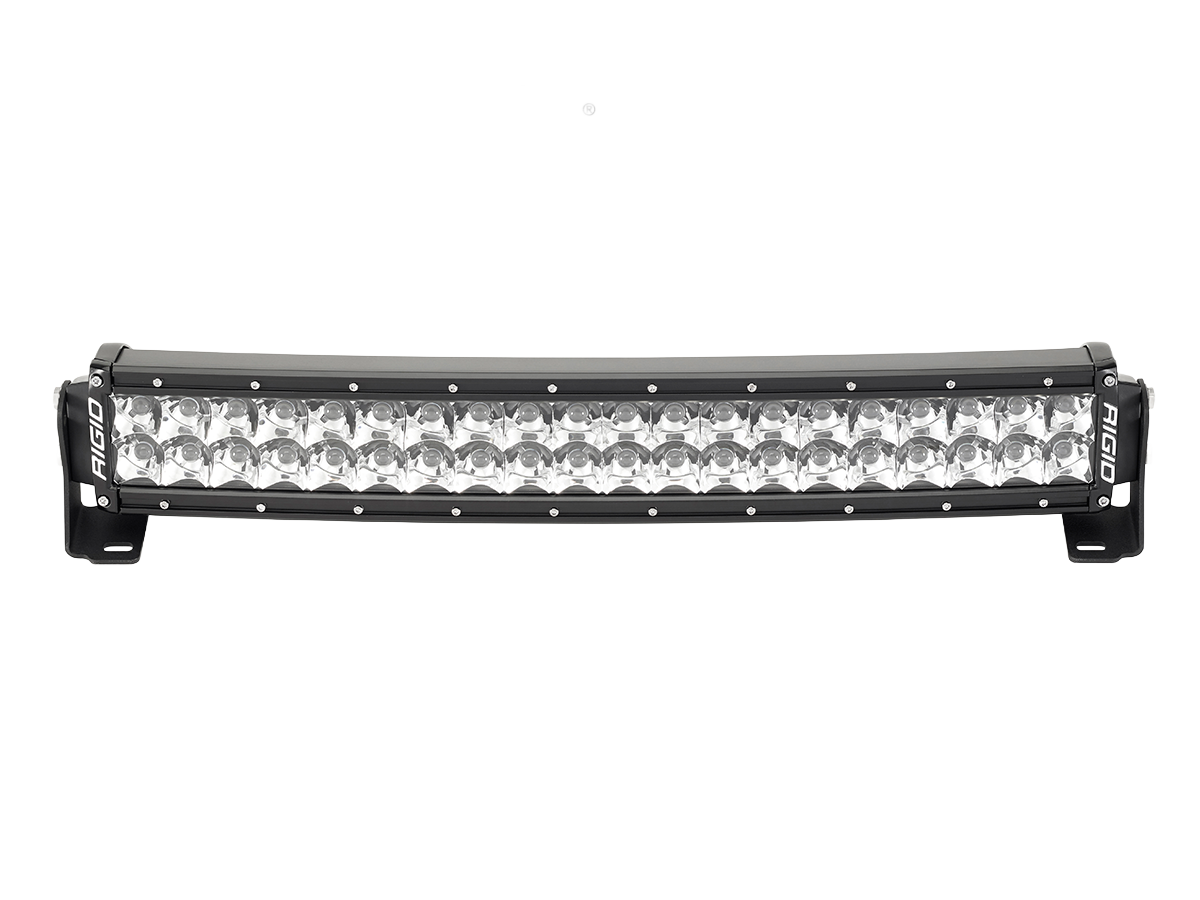

Rigid RDS-Series Pro 20" LED Auxiliary Light Bar – Curved & Powerful Light Pattern

For those who want to see better – every meter counts
This ramp is built to give you good visibility both far ahead and out to the sides. The curved shape helps spread the light in a gentle arc, allowing you to spot animals, curves or obstacles earlier. This makes driving safer – and more enjoyable.

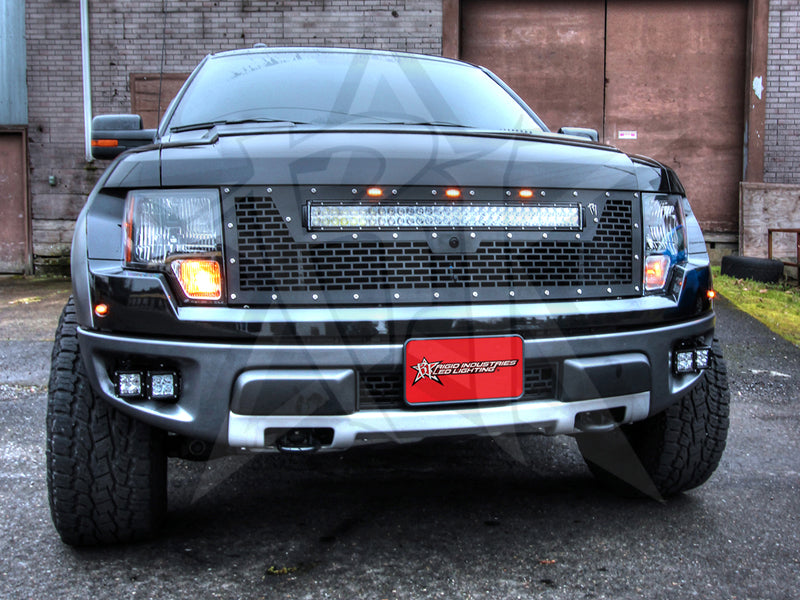

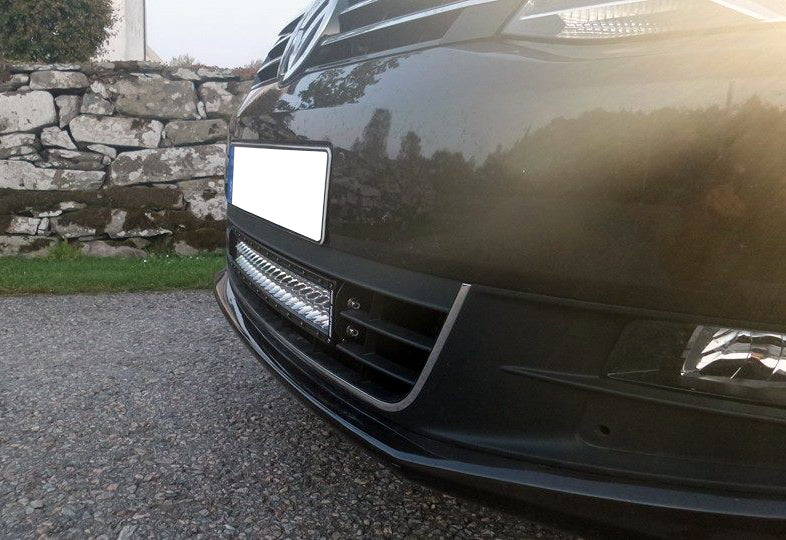

Rigid RDS Pro 20" fits perfectly on passenger cars, pickups and vans. It is as long as a license plate and can be easily mounted with a universal bracket behind the plate, such as B120, or directly in an auxiliary light bar. It also works well with ready-made brackets from Qpax or other bar manufacturers.

Easy assembly – everything you need is included
The ramp comes with side brackets that you can angle freely, so you can direct the light where you want. It does not have pre-assembled connectors – instead you get two cable ends (plus and minus) that you connect with the included cables. We recommend using crimp connectors or soldering for best results.

Power: 234W

Luminous flux: 31,680 lumens (theoretical)

Range: 536 m @ 1 lux

Light pattern: Combined length and width (Drive/Spot Combo)

Number of LEDs: 40

Voltage: 12–24 V

Current consumption: 17 A

IP rating: IP68 – resistant to water and weather

Length: 543mm

Height (excl. bracket): 83 mm

Depth: 95mm

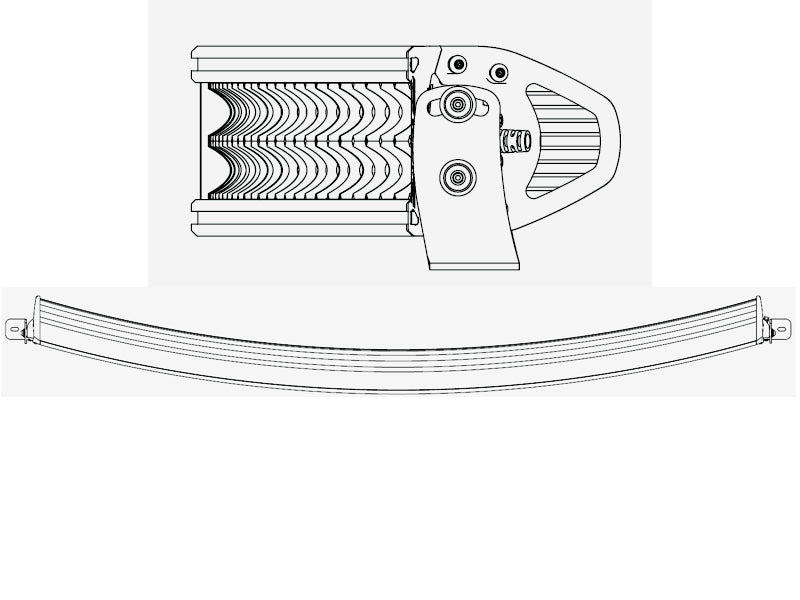

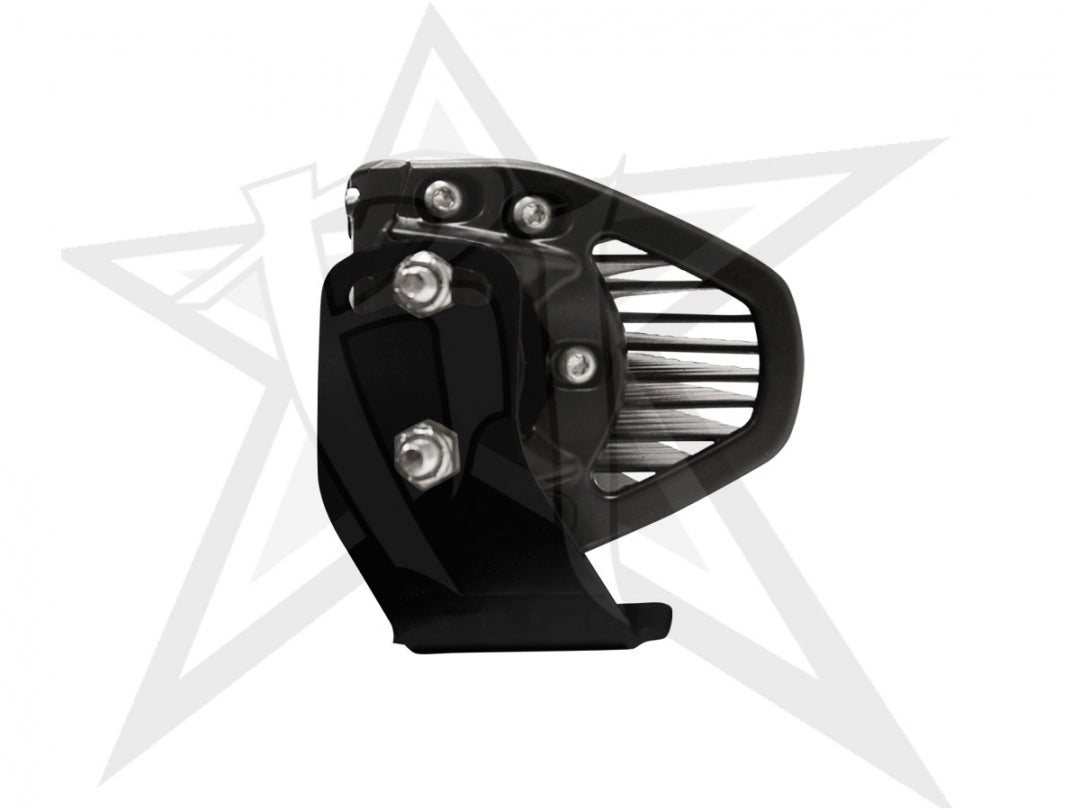

Bracket: Side-mounted L-brackets, 360° adjustable

E-marked: No

Warranty: 5 years

Article number: Replaces 88221

Sold: Individually
