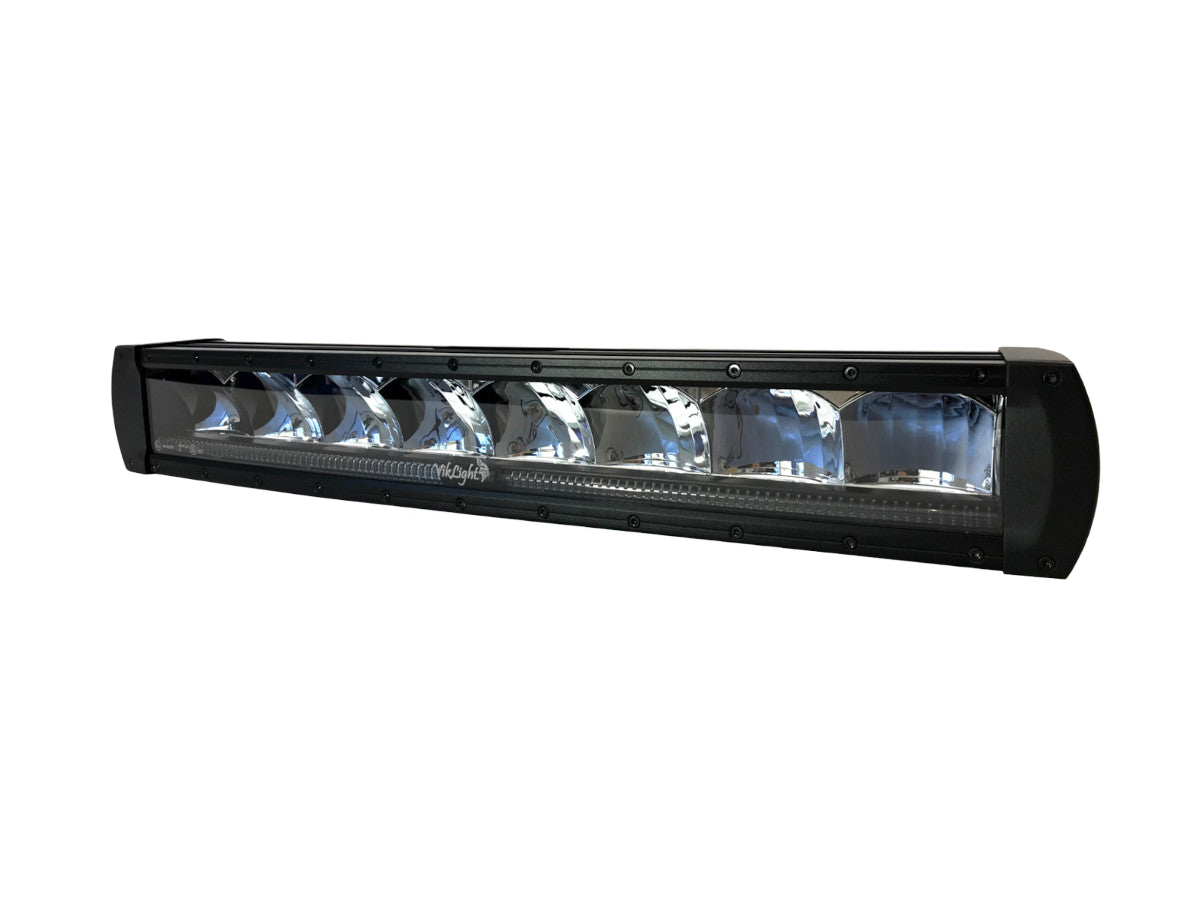

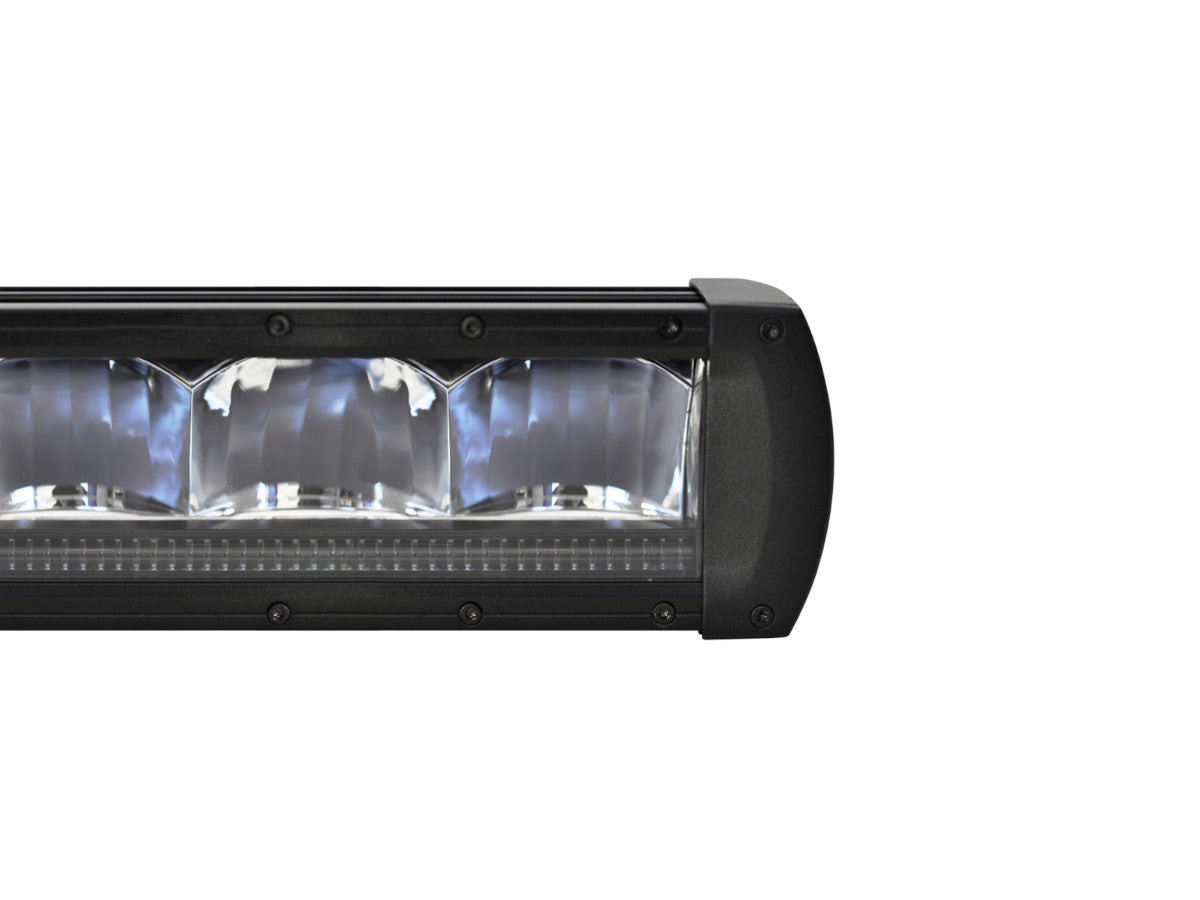

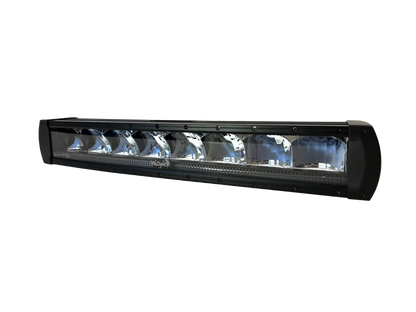

Viklight Ramer 22-inch LED ramp 8600 lm – Curved light pattern & E-marking

Efficient LED bar with curved optics and flexible mounting

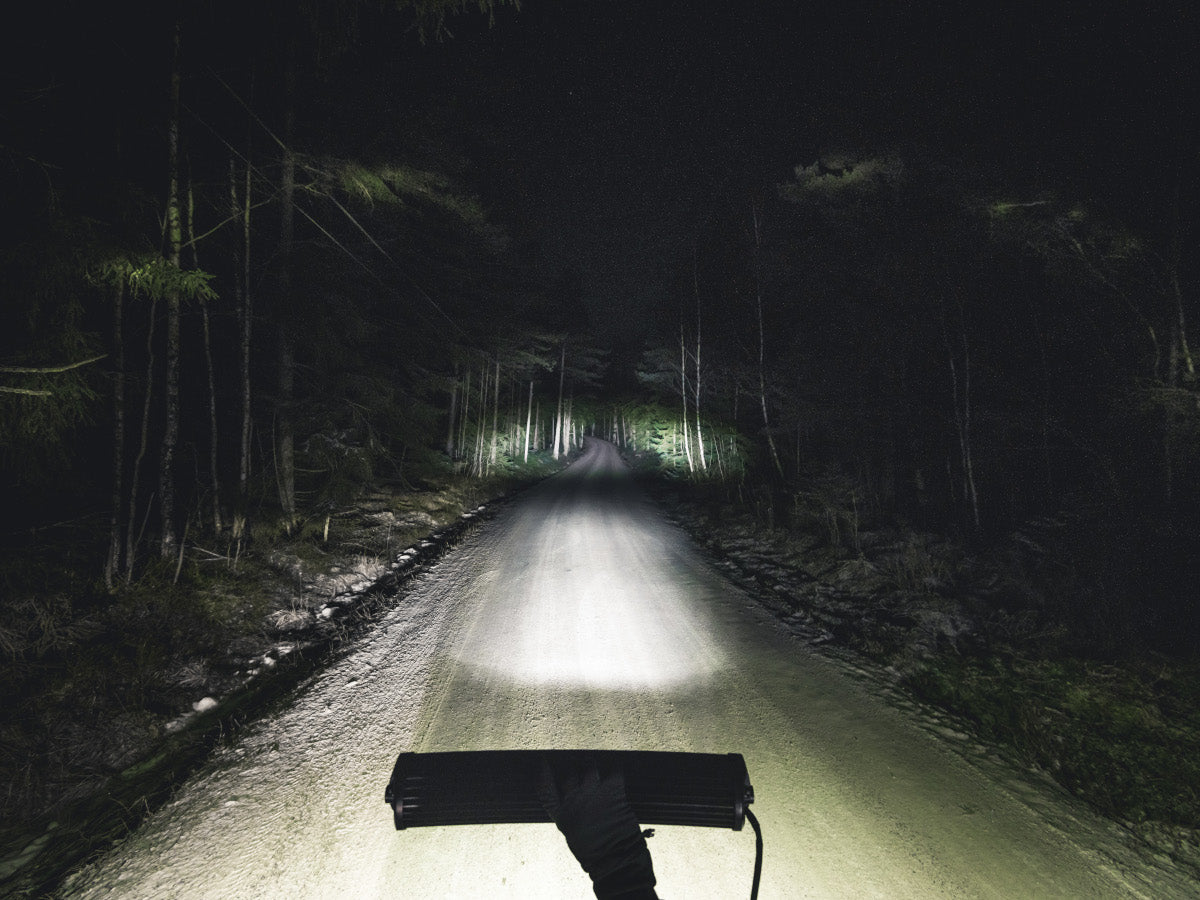

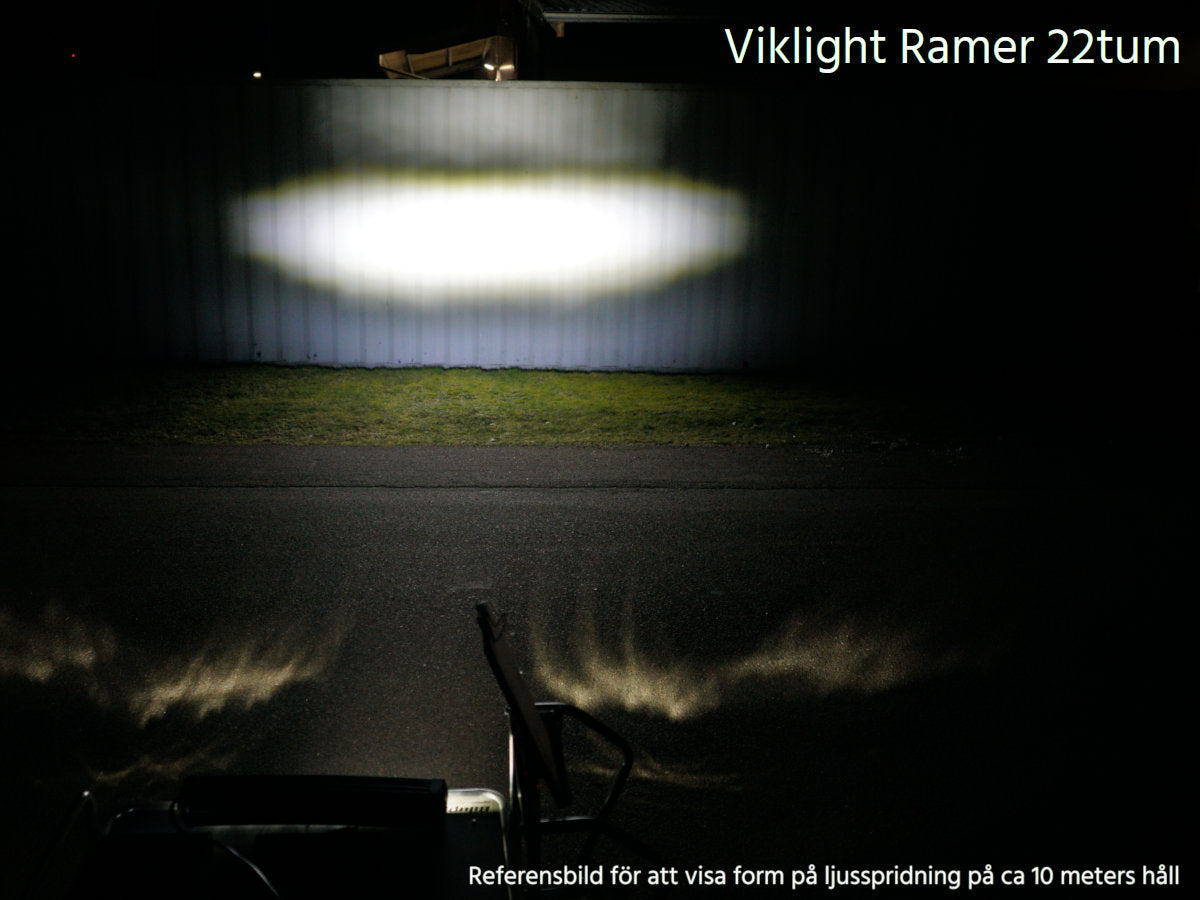

Viklight Ramer 22-inch delivers substantial brightness and long range with a clearly wide light pattern thanks to its curved shape. It is developed to provide a safer driving experience in the dark – regardless of whether you are driving on a country road, gravel road or in forest terrain. The ramp's 8600 theoretical lumens and 1 lux at 371 meters give you a powerful complement to the high beam.

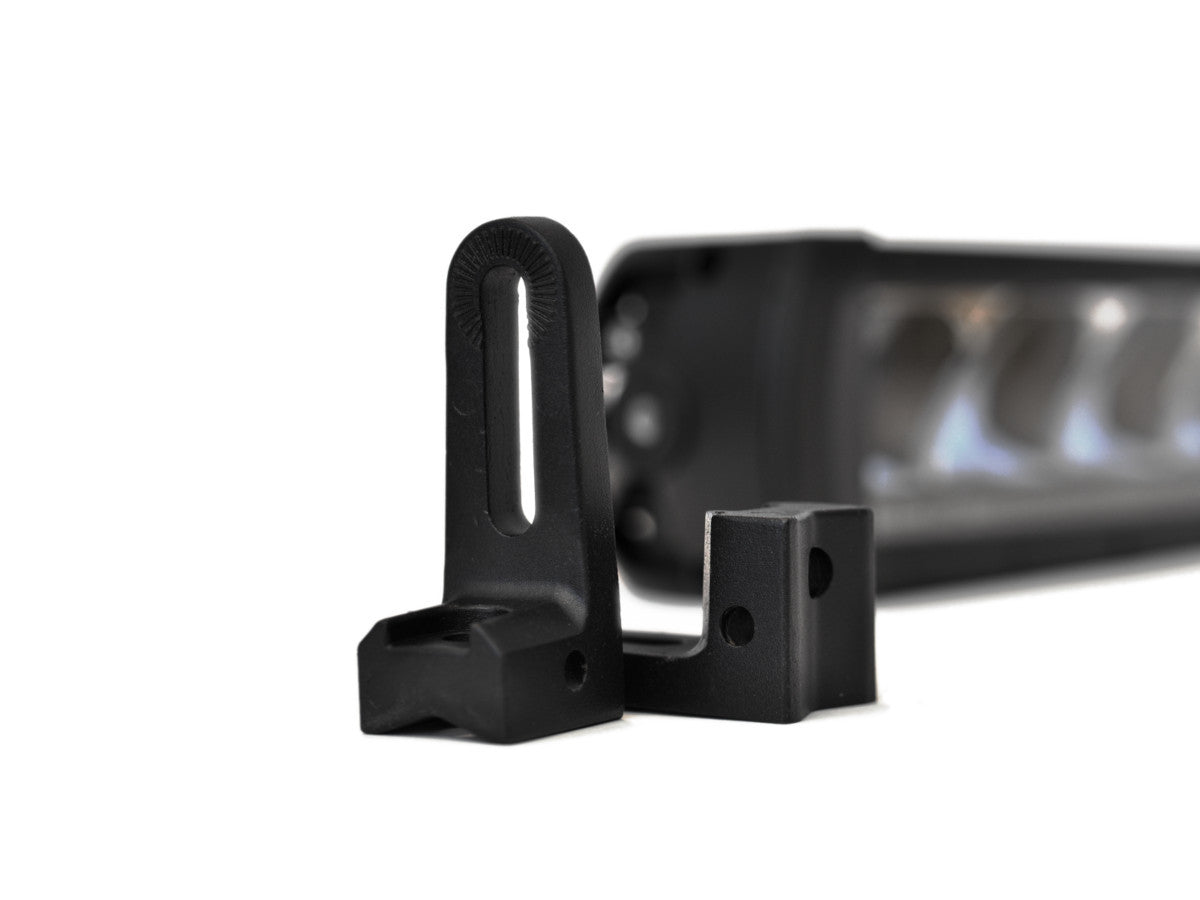

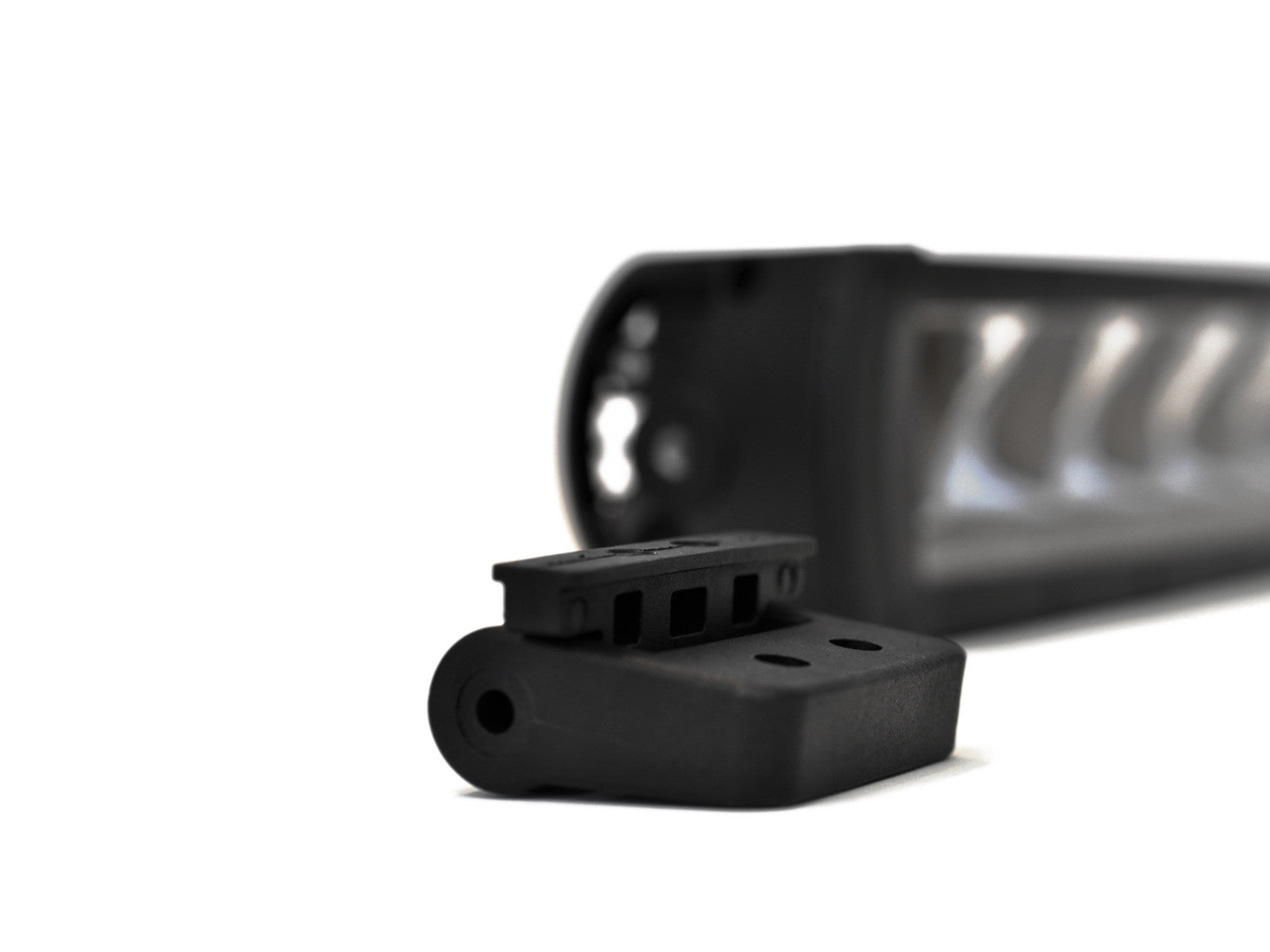

The E-marked ramp is approved as an additional light and fits in many vehicle installations thanks to the smart mounting solution. With two included mounting systems – a stepless rail and L-shaped side feet with 360 degree adjustment – ​​you can mount the ramp upright or hanging, and adjust the height and angle for the perfect light pattern.

The material choices are made for the Nordic climate: a robust lamp housing in aluminum and magnesium, polycarbonate lens and Gore-Tex-inspired membrane valve that reduces the risk of condensation. Position lights in LED line format give a stylish expression, although use requires correct installation according to regulations.

Cable set is not included, but the ramp's DT connector is compatible with the Vikrela option, which contains a relay, fuse and switch. An extra loose DT connector is included in the box.

Power: 120 W (8 × 15 W LEDs)

Luminous flux: 8600 lumens (theoretical)

Light image: Driving Beam

Range: 371 m (1 lux)

Voltage: 9–36 V DC

Current consumption: 10 A @ 12 V

Color temperature: 6500K

IP class: IP68

Position light: LED line (not approved as stand-alone)

Mounting: Stepless rail + side feet with 360° adjustment

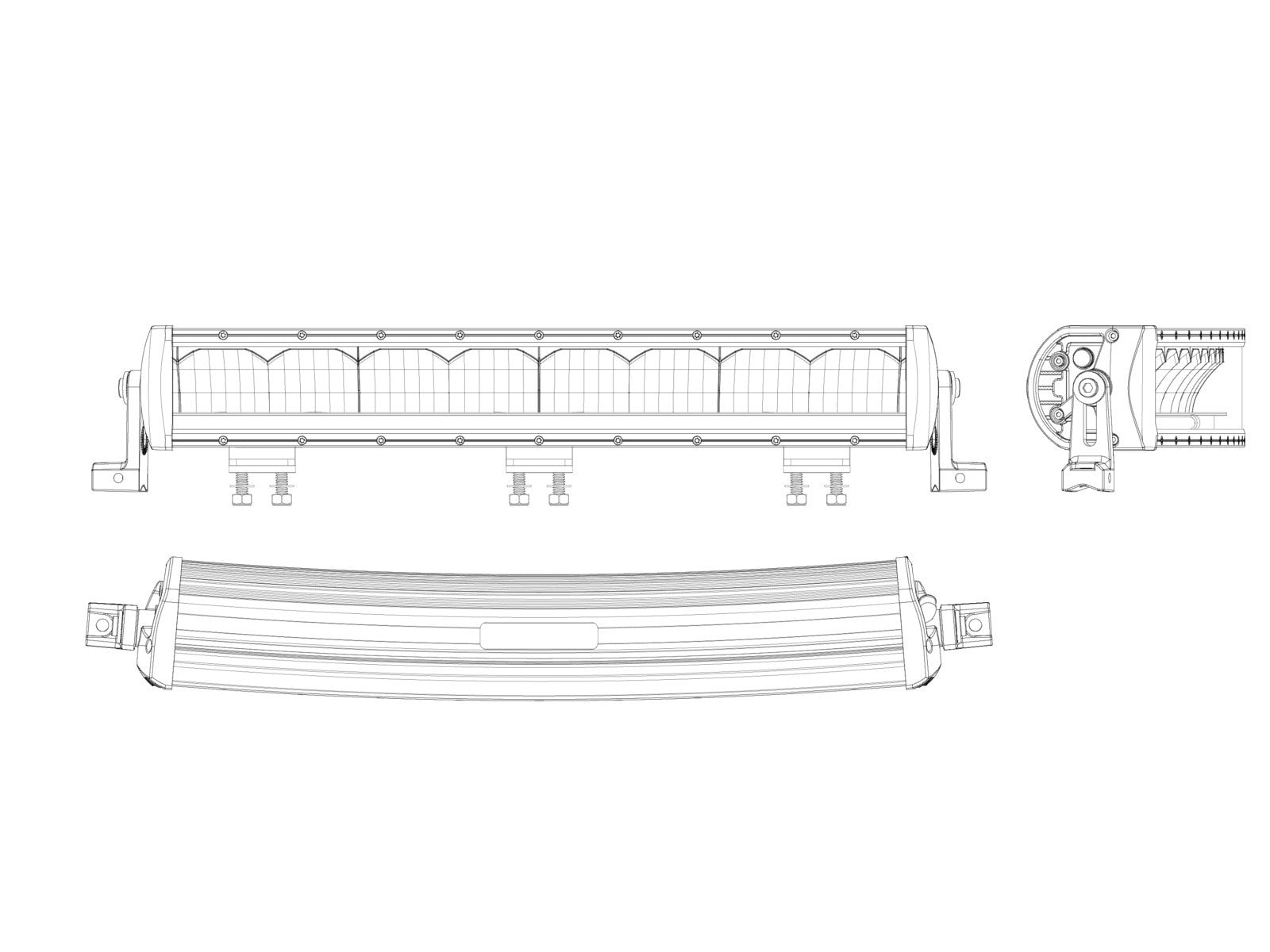

Dimensions (L×H×D): 560 × 115 × 90 mm

Height excl. bracket: 80 mm

Lens: Polycarbonate

Housing: Aluminum/magnesium

Lifespan: 50,000 hours

Approvals: E4, ECE R112 Ref. 30, R10

Warranty: 3 years
